Ground Mounting Structure With C-Piling RAMMING PILE

Item No.:  GM-GT2

Payment:  TT

Product Origin:  Xiamen,China

Color:  Natural

Shipping Port:  Xiamen

Lead Time:  8-15

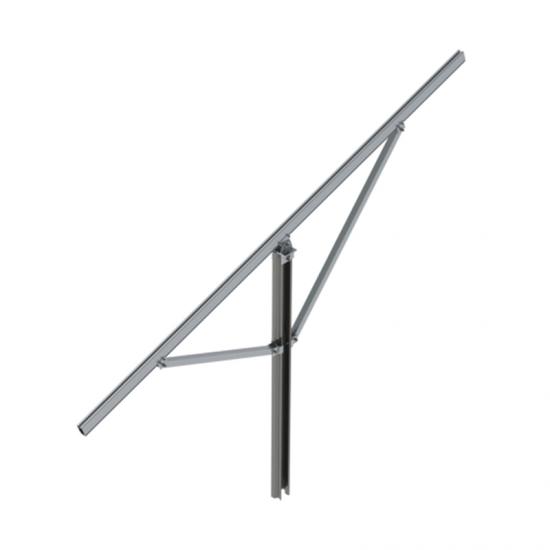

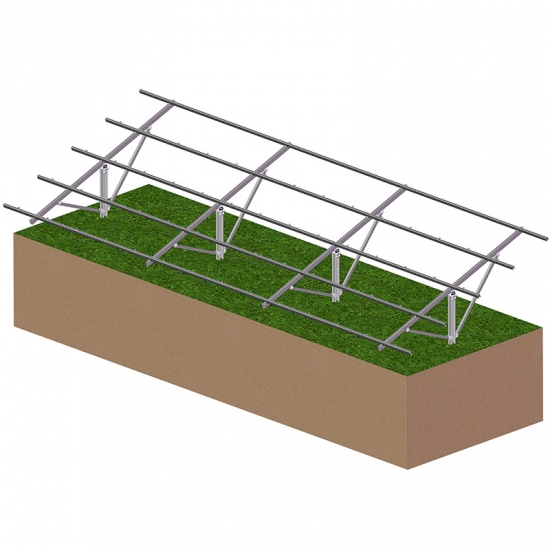

WESUN PV ground mounting system 2 (also called the “GT2”) is a ground system with pre-assembled screw pile foundation or cement base. Which is suitable for large-scale commercial installation and multi-purpose installation.As a mounting system for various photovoltaic modules GT2 ’s unique I-shape rail makes the installation simpler and better precision. GT2’s pre-assembled rack is designed to save time and manpower.

Installation site: open filed.

Tilt angle:0-60 Degree.

Max wind speed:0-80m/s.

Max snow load:0-150cm.

Application:All kinds of panel.

Installtion direction:Landscape /Vertical

Material:Alumiunm&hot dipped galvanized.

Design Criteria:AS/NZS1170,JIS C8955:2011/2017,DIN1055.

Our Advantages

1.Unique post profile, saving material cost.

2.Simple installation, saving labour lost.

3.Horizontal and vertical rotation available.

4.Tilt IN/OFF design, easy for installation.
